UC-3500
Colour CMOS sensor image technology
Fast and highly accurate measurement
Distinguishes red blood cells and free haemoglobin
Two Different types of test strips available
Microalbumin and creatinine test together on one strip

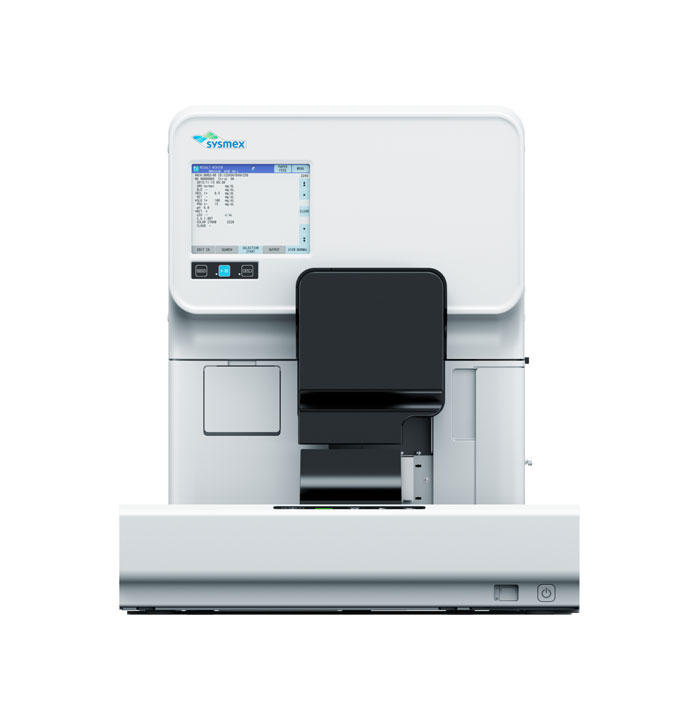

Fully Automated Urine Chemistry Analyser
The new UC-3500 is a fully automated urine chemistry analyser that offers novel clinical values.
The clinical urine sample is spotted onto each pad of a dedicated test strip within the analyser. The entire sequence, starting from sample aspiration, to colour comparison and final output of the results is fully automated. In addition to the five system parameters, the 11 test strip parameters include microalbumin and creatinin.
The new CMOS sensor enables the device to effortlessly distinguish abnormal colours between RBCs and haemoglobin. The refractometry measurement method enables accurate results for specific gravity and turbidity.
The fast analyser is capable of processing 276 samples per hour.

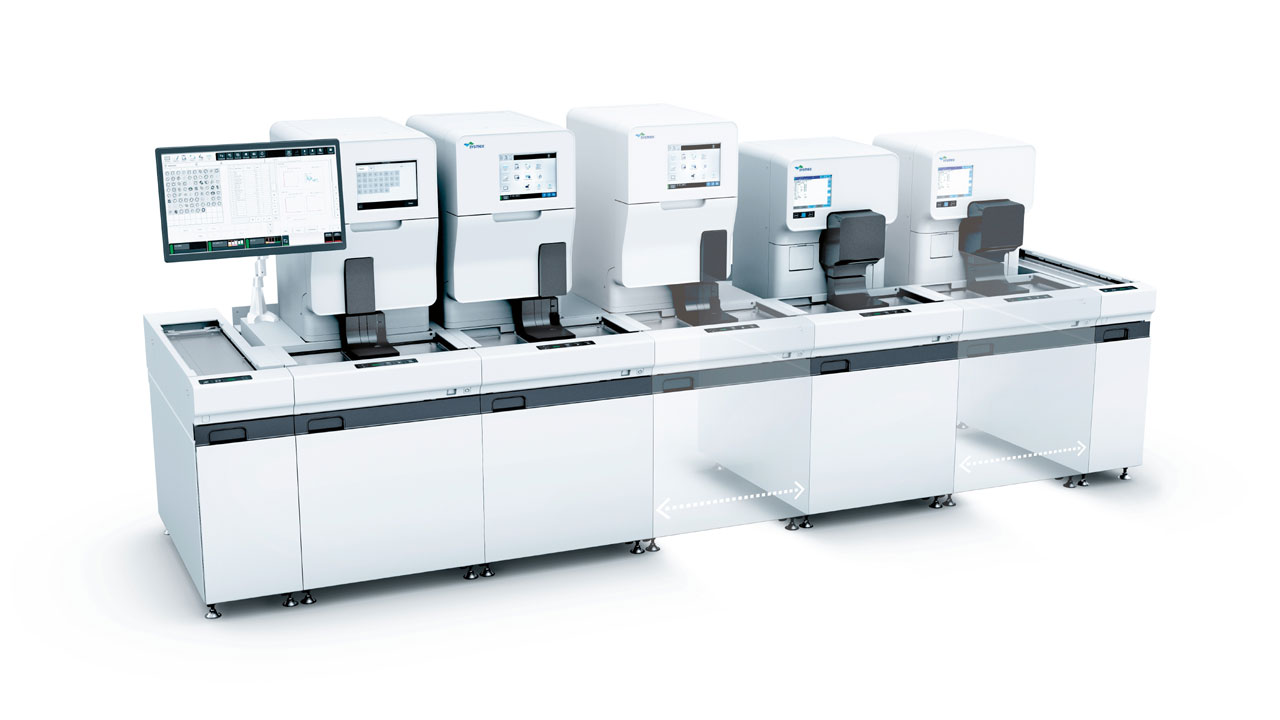

Modular Concept Solution
Modular concept: easy to combine with other members of the UN-Series (UF-4000/5000 and UD-10) to fully automate your urinalysis workflow.
With the introduction of the Urinalysis Work Area Information Management System (U-WAM), Sysmex can improve the workflow efficiency of the new urinalysis series.
| Technology: | Reflectance photometry and Refractometry |
| Aspiration volume: | 0.23 mL per test strip |
| Minimum required volumes: | 1 mL per test strip |
| Throughput: | 276 samples/h |
| Parameters / test strips: | Max. 16 parameters 2 types of test strips PP/C |
| Measurement Principles: |
|
| Technology: | Reflectance photometry with colour CMOS sensor Refractometry |
| Parameters |
|
| Reagents |
|
- Features & Benefits
-
Fully Automated Urine Chemistry Analyser
The new UC-3500 is a fully automated urine chemistry analyser that offers novel clinical values.
The clinical urine sample is spotted onto each pad of a dedicated test strip within the analyser. The entire sequence, starting from sample aspiration, to colour comparison and final output of the results is fully automated. In addition to the five system parameters, the 11 test strip parameters include microalbumin and creatinin.
The new CMOS sensor enables the device to effortlessly distinguish abnormal colours between RBCs and haemoglobin. The refractometry measurement method enables accurate results for specific gravity and turbidity.
The fast analyser is capable of processing 276 samples per hour.
Modular Concept Solution
Modular concept: easy to combine with other members of the UN-Series (UF-4000/5000 and UD-10) to fully automate your urinalysis workflow.
With the introduction of the Urinalysis Work Area Information Management System (U-WAM), Sysmex can improve the workflow efficiency of the new urinalysis series.
- Specifications
-
Technology: Reflectance photometry and Refractometry Aspiration volume: 0.23 mL per test strip Minimum required volumes: 1 mL per test strip Throughput: 276 samples/h Parameters / test strips: Max. 16 parameters
2 types of test strips
PP/CMeasurement Principles: - Each test strip is scanned with a color CMOS sensor and photometry is performed
- Automatically detect the position of the test strip pads
- By improving the light path, cloudiness and specific gravity became less affected by turbidity
Technology: Reflectance photometry with colour CMOS sensor
RefractometryParameters - Test strip parameters
1. Meditape UC-9A: URO, BLD, PRO, GLU, KET, BIL, NIT, LEU, pH
2. Meditape UC-11A: URO, BLD, PRO, GLU, KET, BIL, NIT, LEU, pH, CRE, ALB - System Parameters
PP/C, A/C, SG, COLOR, TURBIDITY
Reagents - Test strips
- Meditape UC-9A
- Meditape UC-11A
- SG Calibrator (3 level)
