First step into full automation: Fully automated 5-part differential haematology analyser. This is a standalone, benchtop instrument including a sampler with Rerun & Reflex functionality. You can further equip our flagship analyser with diagnostic applications as needed.
XN-1000
Hourly throughput of up to 100 samples
Onboard decision rules with user-defined rerun/reflex capabilities
Customisable diagnostic applications to cater to variable clinical needs
Optional integration of slide maker & stainer
Available as bench top system or floor-type (with wagon)
With its small footprint, the XN-1000 standalone offers reproducible result quality in the shortest possible time. Built with an automated re-run/reflex capability, it significantly reduces manual interventions and frees up time and resources. Fitted with all the available diagnostic applications, the XN-1000 is a powerhouse in small footprint
| Measurement principles |
|
| Aspiration volume | 88 µL in whole blood (WB) mode and body fluid (BF) mode |
| Throughput | up to 100 samples/h |
| Quality control material | XN Check (three levels) and XN Check BF (two levels) |
| Parameters |
|
| Configurations |
|
- Features & Benefits
-
With its small footprint, the XN-1000 standalone offers reproducible result quality in the shortest possible time. Built with an automated re-run/reflex capability, it significantly reduces manual interventions and frees up time and resources. Fitted with all the available diagnostic applications, the XN-1000 is a powerhouse in small footprint
- Specifications
-
Measurement principles - WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry
- RBC/PLT: Hydrodynamically focussed impedance
- HGB: Cyanide-free SLS haemoglobin
Aspiration volume 88 µL in whole blood (WB) mode and body fluid (BF) mode Throughput up to 100 samples/h Quality control material XN Check (three levels) and XN Check BF (two levels) Parameters - XN-CBC (always with NRBC) & XN-DIFF (always with IG)
- Whole Blood
WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV, P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG# - With RET (optional)
RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O - With PLT-F (optional)
PLT-F, IPF, IPF# - With WPC (optional)
Extended Inflammation Parameters licence: NEUT-GI, NEUT-RI, RE-LYMP%, RE-LYMP#, AS-LYMP%, AS-LYMP# - XN Stem Cells licence
HPC%, HPC# - Body Fluids with XN-BF
WBC-BF, RBC-BF, MN%, MN#, PMN%, PMN#, TC-BF# (optional)
Configurations - XN-1000 [DIFF]
- XN-1000 [WPC]

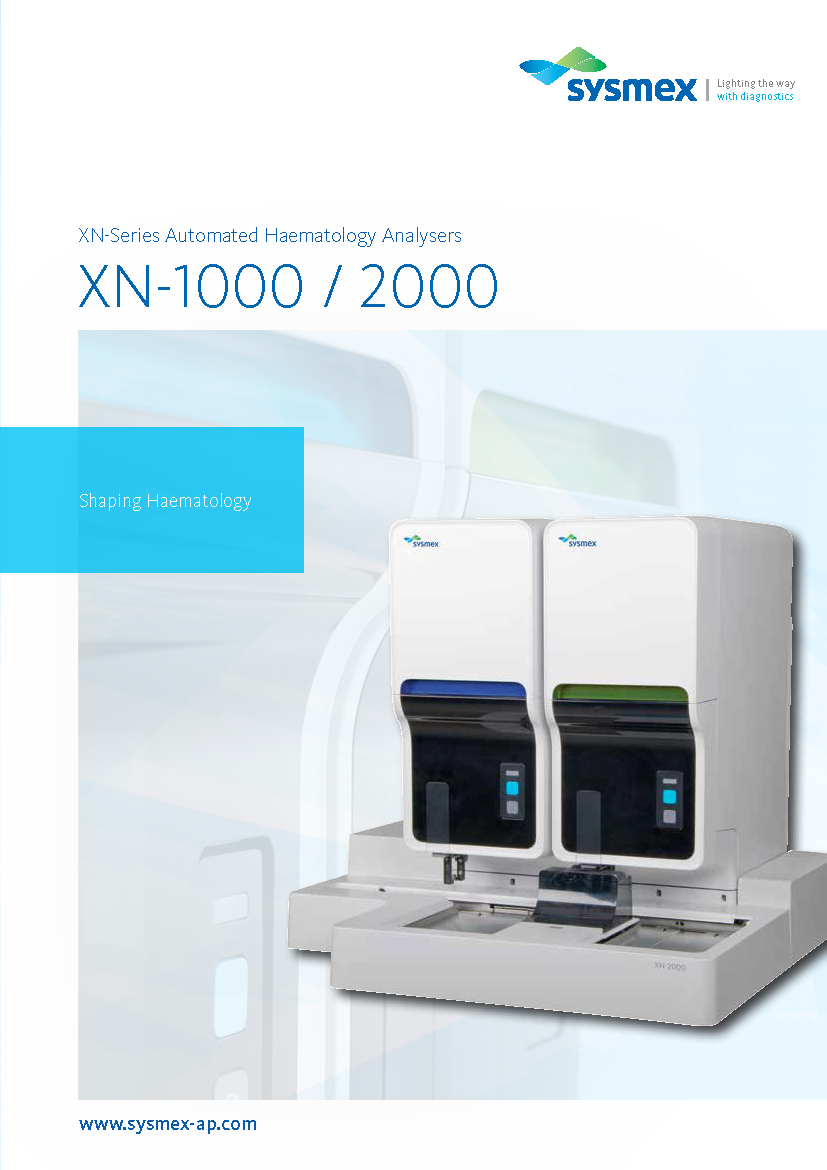

- Documents
-
